LYSAGHT Supapurlin®

An advanced Zed and Cee Purlin

LYSAGHT Supapurlin®

An advanced Zed and Cee Purlin

Description

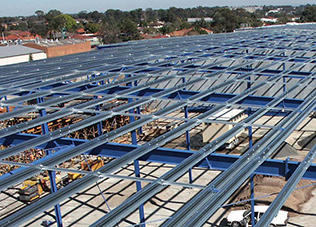

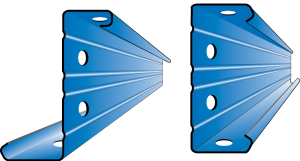

These alternative structural decking profiles consist of advanced large Zed and large Cee profiles and are an advancement of the traditional Zed and Cee profiles. The benefits of the traditional Zed and Cee profiles are retained, however there are substantial added benefits of the new alternative purlin profiles. The features of the traditional purlins that are the same in the advanced purlin shapes are:

  • Single web
  • Top & Bottom flange. The Cee profile has equal flanges. The Zed profile has the flanges facing in opposite direction and one flange is “wide” and one is “narrow” to allow lapping.
  • Lip stiffeners at the free end, or extremity, of the flange. These lips point back towards the centre of the profile.



Additional Features
  • Longitudinal web stiffeners (4 off)
  • Lip has an added stiffeners at the free end, or extremity, of the lip. These added stiffeners point back towards the web of the profile
  • Rounded lips means added site safety from handling of sharp edges.
  • Rounded corners means added site safety due to ease of sliding of purlins on rafter surfaces, and no damage to surfaces of painted rafters from sliding of purlins during installation.
  • Rigidity of purlin means added safety and less labour requirements during the flipping of purlins during installation onto cleats.
  • Unique patented profile, which cannot be copied. What is specified is what you get. Thus the design strength is not compromised and the material is guaranteed to be Australian
  • Significant improvement in strength performance can be achieved in many purlin sizes and span configurations. Thus there are considerable further economic benefits to be made



Specifications



Improved Performance

The efficiency of the Supapurlin® profiles delivers significant savings. Performance improvements can be achieved over traditional zed and cee purlin designs, when using SupaZed® and SupaCee® Purlins. The result is increased purlin spacing, increased purlin spans (frame or rafter spacing) and fewer rows of bridging.



(Performance comparisons vary by individual purlin size, span configuration and bridging configuration. We can help with design comparisons for your next project).



Capacity Gain – SupaZed® over Traditional Zed Purlin



Indicative only, subject to design criteria and assumptions used.



Please Note: When comparing the capacity of LYSAGHT® purlins with other purlin profiles care needs to be exercised. Comparisons can only be successfully completed when a “like-for-like” comparison is made. Differences can result from a number of reasons such as the selection of design parameters for;

  • Cleat restraints, cladding restraints
  • Bridging location
  • Profile dimensions
  • Lap length
