Structural Decking

Bondek Plus

Description

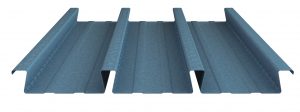

BONDEK PLUS® is a traditional flat pan or ‘re-entrant’ profile that provides unmatched performance in suspended concrete slabs. BONDEK PLUS® is used in both concrete and steel frame construction and utilises patented technology to achieve superior spanning capabilities, less deflection and greater composite strength than similar re-entrant profiles. BONDEK PLUS® comes complete with a range of accessories allowing for easy suspension of ceilings and surfaces.

  • Stronger composite strength – BONDEK PLUS® is stronger than similar decks due to the patented corner embossments. The patented corner embossments develop a strong mechanical interlock with the concrete slab.
  • Greater spanning capacities – BONDEK PLUS® is stronger than similar decks in positive bending and end shear due to the dovetail ribs which resist lateral deflection by up to 10%.
  • Supplied in BONDEK BLUE® featuring a blue anti-glare coating reducing reflected light by a minimum of 80%, which means greater comfort for installers and follow up trades on site.
Note

Design & detailing should be carried out by a qualified structural engineer

Specifications

LYSAGHT BONDEK PLUS® profiled steel decking is rollformed from G550 (550 MPa) Yield Stress) steel with a Base Metal Thickness (BMT) of 0.60mm, 0.75mm, and 1.00mm. The galvanised coating thickness is Z350 (350g/m2) in accordance with AS 1397:2001.

Thickness Mass Yield
Strength
Coverage
mm kg/m² kg/m MPa m²/t
0.60 8.38 5.03 550 119.3
0.75 10.32 6.19 550 96.9
1.00 13.56 8.14 550 73.7



Schematics
