LYSAGHT® Fascia Purlin

Easy-to-use, economical eave purlin and fascia combined

LYSAGHT® Fascia Purlin

Easy-to-use, economical eave purlin and fascia combined

Description

LYSAGHT® Fascia Purlins incorporate many design features which make it an easy-to-use, economical eave purlin and fascia combined. Wider portal frame spacings have created a need for long length, one piece fascia purlins.



Roll-formed from high-tensile Australian-made steel, galvanised for corrosion protection, these fascia purlins can be supplied in any required length from 1,000mm to 15,000mm. The continuous lengths eliminate costly, time consuming splice plates and the resultant bolts which can interfere with the roof sheeting.



  • Long length one piece purlins ideal for portal frame buildings.
  • Roll-formed from high tensile Australian-made galvanised for corrosion protection.
  • Lengths are available from 1,000mm to 15,000mm.
  • Fluted face accommodates bolt heads to provide flat surface for mounting gutter.
  • Complements Zeds, Cees and purlins range.
  • The top flange can be rolled to any angle from 84º to 120º for roof pitches from -6º to 30º.

Specifications

Dimensions

For full dimensions of LYSAGHT® Fascia Purlins, please Download



Specification

Fascia Purlins are roll-formed from hot-dipped, zinc-coated, high strength zinc-coated. The steel strip conforms to AS 1397:2011 in the following grade: 1.9mm BMT, G450, Z350 (G450 = 450MPa minimum yield stress, Z350 = 350g/m2 minimum coating mass).

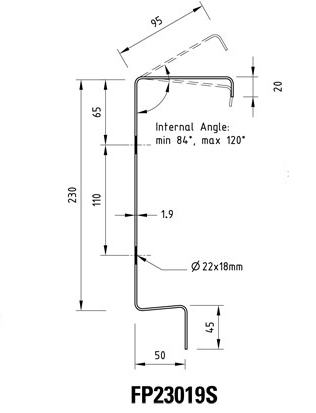

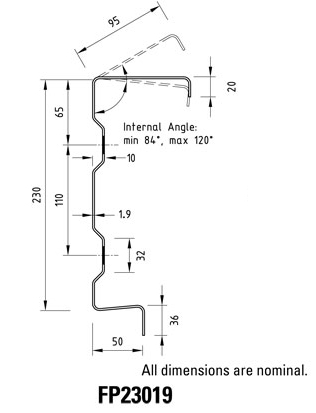

Schematics
