KLIP-LOK CLASSIC® Sydney & Newcastle | 40mm Concealed-fix Roofing & Walling | All Metal Roofing

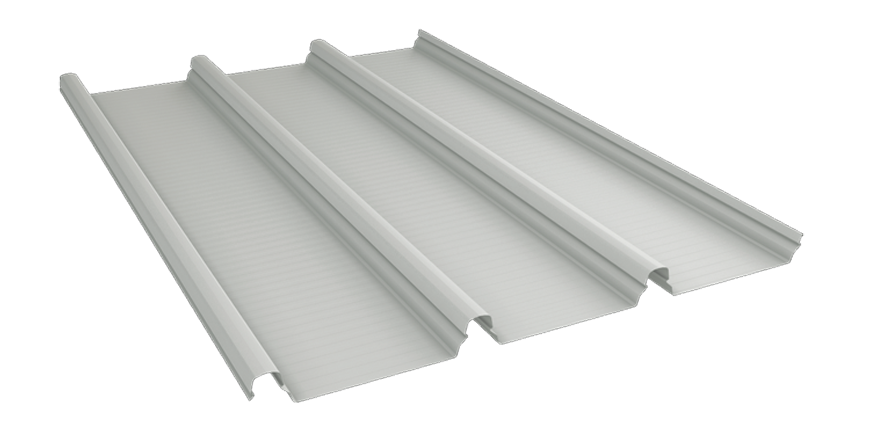

KLIP-LOK CLASSIC® 700

Concealed fixed roofing

KLIP-LOK CLASSIC® 700

Concealed fixed roofing

Description

KLIP-LOK CLASSIC® 700 features improved rib strength for excellent spanning capacity. Visually, a strong rib makes a bold statement rising from flat pans with longitudinal fluting. Installed using a concealed fixed clip system permiting thermal expansion of long, straight runs, and because there are no piercings through the cladding; the long, straight lines of KLIP-LOK CLASSIC 700® remain crisp and clean. And no piercings also means superb weatherproof performance.

  • Wide cover concealed-fixed cladding with no exposed fasteners for weathertight roofs
  • Excellent water carrying capacity
  • Strong rib makes bold visual statement
  • Easy-to-install fixing clip means roof can be laid faster and more economically
  • Installed using the KLIP-LOK CLASSIC® 700 fixing clip system which is the fast and effective solution for weather resistant end and expansion joints.

Colour Range

Categories

Filter

Filter by finish

Standard Colour Range

Basalt®

Bluegum®

Classic Cream™

Cottage Green®

Deep Ocean®

Dover white™

Dune®

Evening Haze®

Gully®

Ironstone®

Jasper®

Manor Red®

Monument®

Night Sky®

Pale Eucalypt®

Paperbark®

Shale Grey™

Southerly®

Surfmist®

Wallaby®

Windspray®

Woodland Grey®

Ultra Colour Range

Dune®

Monument®

Surfmist®

Wallaby®

Windspray®

Woodland Grey®

Matt Colour Range

Basalt®

Bluegum®

Dune®

Monument®

Shale Grey™

Surfmist®

Metallic Colour Range

Aries™

Astro™

Celestian™

Cosmic™

Galactic™

Rhea™

Unpainted Steel Range

ZINCALUME® steel

UniCote® Lux Steel Samples

African Wenge

Ashwood

Corten Red

Maple

Metal Stone

Midnight Matte

Pentagon

Saffiano

Silver Quartz

Spectrum

Weathered Iron

Zinc Graphite

Specifications

BMT

0.42mm or 0.48mm



Cover

700mm



Lengths

Sheets are supplied custom cut.



Tolerance

Length: +0mm, -15mm
Cover Width: + 4mm, – 4mm



Make allowance for thermal expansion or contraction for long length roofs at sheeting ends.
The equation ΔL = α x ΔT x L gives an indication of the sheeting extent or contraction (ΔL).
α = 12 x 10-6 (coefficient of linear expansion for steel).
ΔT = temperature change in °C.
L = sheet length in mm
Mt=1.0 with the following assumptions made:



Roofs:
Cpi=+0.20, (Region A : Cpe=-0.65) (Region B : Cpe=-0.90),
Walls:
Cpi=0.20, Cpe=-0.65



Material Specification
  • Next generation ZINCALUME® zinc/aluminium/magnesium alloy-coated steel complies with AS 1397:2011 G550, AM125 (550 MPa minimum yield stress, 125 g/m2 minimum coating mass)
  •  COLORBOND® steel complying with AS/NZS 2728:2013 and the steel base is an aluminium/zinc/magnesium alloy-coated steel complying with AS 1397:2011. Minimum yield strengths are G550 (550MPa). Minimum coating mass is AM100 (100g/m2)
  •  COLORBOND® Ultra steel designed for severe coastal or industrial environments (generally within about 100-200 metres of the source). The painting complies with AS/NZS 2728:2013 the steel base is an aluminium/zinc/magnesium alloy-coated steel complying with AS 1397:2011. Minimum yield strengths are G550 (550MPa). Minimum coating mass is AM100 (100g/m2)
  •  COLORBOND® Stainless steel for severe and coastal environments. The painting complies with AS/NZS 2728:2013 and the steel base is stainless steel complying with AISI/ASTM Type 430; UNS No. S43000.



Physical Properties

BMT Material kg/m kg/m2 m2/t
0.42 ZINC / ALUMINIUM COATED 3.26 4.66 215
0.42 PRE-PAINTED STEEL 3.32 4.74 211
0.48 ZINC / ALLUMINIUM COATED 3.70 5.29 189
0.48 PRE-PAINTED STEEL 3.76 5.37 186

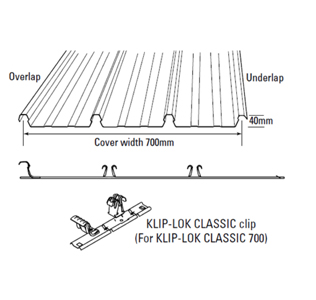

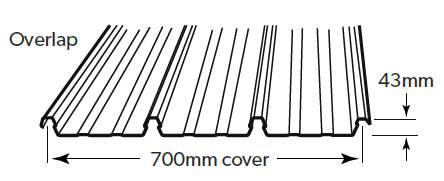

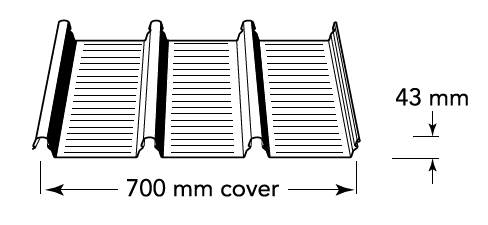

Profile
