KLIP-LOK® 406

Description

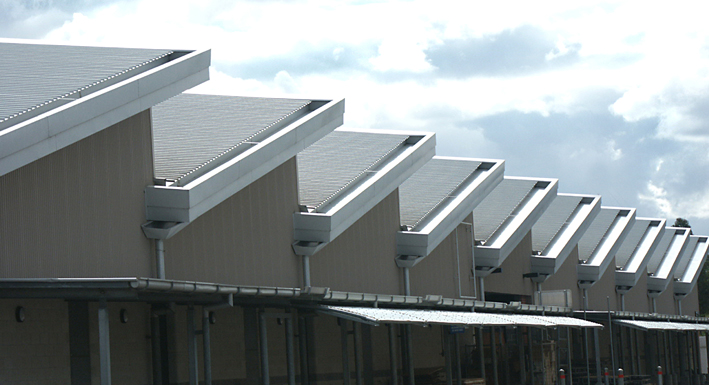

KLIP-LOK® 406 is a strong, durable and versatile long length roof. The concealed fastening method enables its use on many applications from low pitched roofs to vertical or horizontal ribbed walling.

Fixing clips effectively secure KLIP-LOK® 406 to steel or timber supports without puncturing the sheet
No exposed fasteners means clean and smooth lines
Long, straight lengths of KLIP-LOK® 406 can be laid in place and easily aligned
Fixing with our clips is simple and fast. The smaller number of clips for a given area provides extra economy

Colour Range

This product is available in the standard range of COLORBOND® steel colours and in unpainted ZINCALUME® steel.

Standard Colour Range

Classic Cream™

Surfmist®

Shale Grey™

Dune®

Pale Eucalypt®

Jasper®

Woodland Grey®

Ironstone®

Unpainted Steel Range

ZINCALUME® steel

Specifications

BMT

0.48mm

Cover

406mm

Lengths

Sheets are supplied custom cut.

Tolerance

Length: +0mm, -15mm
Cover Width: + 4mm, – 4mm

KLIP-LOK® 406 is made from:

Material Specification

KLIP-LOK® 406 is made from:

Next generation ZINCALUME® zinc/aluminium/magnesium alloy-coated steel complies with AS 1397:2011 G550, AM125 (550 MPa minimum yield stress, 125 g/m2 minimum coating mass)
COLORBOND® steel complying with AS/NZS 2728:2013 and the steel base is an aluminium/zinc/magnesium alloy-coated steel complying with AS 1397:2011. Minimum yield strengths are G550 (550MPa). Minimum coating mass is AM100 (100g/m2)

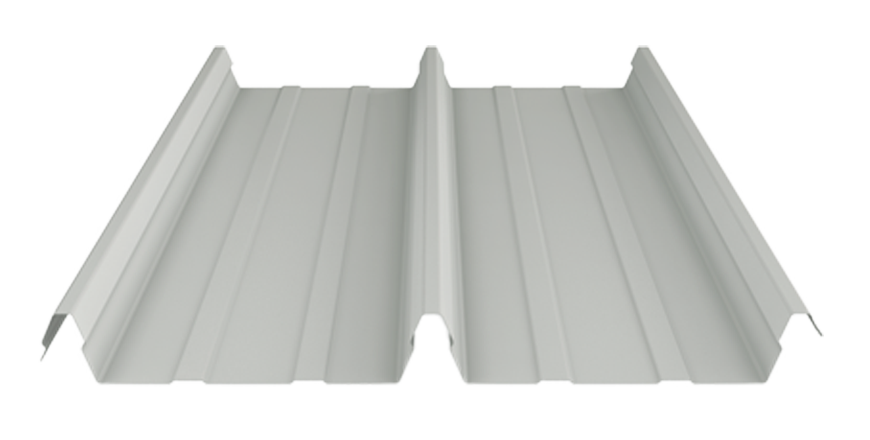

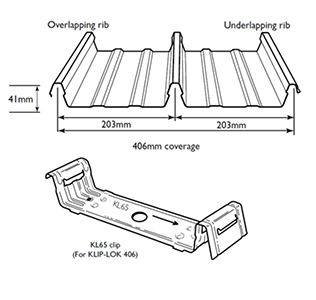

Profile
