Klip Lock 700 High Strength





Klip Lock 700 High Strength





Description:

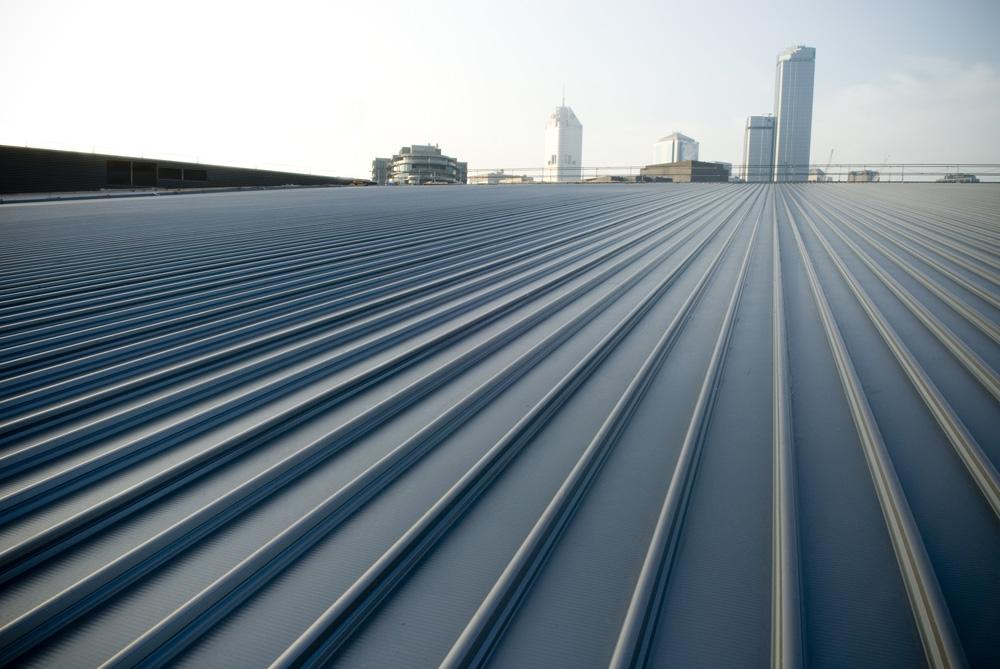

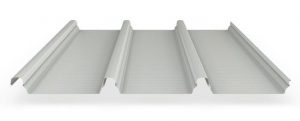

Visually, a bold rib makes a strong statement rising from the flat pans. Thermal expansion of long, straight runs are achievable, and with no exposed fasteners, the long, straight lines of KLIP-LOK 700 HI-STRENGTH® (KL-700HS) remain clean and smooth.



At the heart of the system is the fixing clip, which can be laid in place and fixed simpler and faster than ever before. This is because the KLIP-LOK 700 HI-STRENGTH® clip is fixed with hex. head screws, which are easier to drive.



The clip also gives roofers the ability to accommodate up to 100mm of insulation. KLIP-LOK 700 HI-STRENGTH® is available in rolled-on-site lengths.



KLIP-LOK 700 HI-STRENGTH® is truly a superior product which has earned FM Global approval.





Colour Range

This product is available in the standard range of COLORBOND® steel colours and in unpainted ZINCALUME® steel.

Categories

Filter

Filter by finish

STANDARD COLOUR RANGE

Basalt®

Classic Cream™

Cottage Green®

Cove®

Deep Ocean®

Dune®

Evening Haze®

Gully®

Ironstone®

Jasper®

Mangrove®

Manor Red®

Monument®

Night Sky®

Pale Eucalypt®

Paperbark®

Shale Grey™

Surfmist®

Terrain®

Wallaby®

Windspray®

Woodland Grey®

ULTRA COLOUR RANGE

Dune®

Monument®

Surfmist®

Wallaby®

Windspray®

Woodland Grey®

MATT COLOUR RANGE

Basalt®

Dune®

Monument®

Shale Grey™

Surfmist®

METALLIC COLOUR RANGE

Aries™

Astro™

Celestian™

Cosmic™

Galactic™

Rhea™

UNPAINTED STEEL RANGE

ZINCALUME® steel

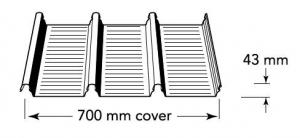

Specifications

BMT

0.42mm, 0.48mm or 0.6mm



Cover

700mm



Lengths

Sheets are supplied custom cut.



Tolerance

Length: + 0mm, – 15mm; Width: + 4mm, – 4mm



Material Specification

 Next generation ZINCALUME® aluminium/zinc/magnesium alloy coated steel complies with AS 1397:2011 G550, AM125 (550 MPa minimum yield stress, 125g/m2 minimum coating mass).



COLORBOND® is pre-painted steel for exterior roofing and walling. It is the most widely used. The painting complies with AS/NZS 2728:2013 and the steel base is an aluminium/zinc alloy-coated steel complying with AS 1397:2011. Minimum yield strengths is G550 (550 MPa). Minimum coating mass is AM100 (100g/m2).



COLORBOND® Metallic is pre-painted steel for superior aesthetic qualities displaying a metallic sheen. COLORBOND® Ultra is pre-painted steel for severe coastal or industrial environments (generally within about 100-200 metres of the source). The painting complies with AS/NZS 2728:2013 and the steel base is an aluminium/zinc alloy-coated steel complying with AS 1397:2011. Minimum coating mass is AM150 (150g/m2).



COLORBOND® Stainless is a pre-painted steel and is used for severe and coastal environments. The painting complies with AS/NZS 2728:2013 and the steel base is a stainless steel complying with AISI/ASTM Type 430; UNS No. S43000.
