Description

‘Solasafe’ Polycarbonate sheeting provides 99% protection from harmful UV rays that cause sunburn and skin damage. Outdoor family and children’s play areas are part of the Australian lifestyle, and selecting the best roofing solution is the first step to ensure you get the maximum benefit from your investment. Polycarbonate is an advanced polymer with optical and physical properties that can’t be matched by other materials. Adding an outdoor room to your home can enhance your family life and add value to your property. Solasafe has three levels of polycarbonate sheeting to choose from. A level to suit your needs and climate. A colour to suit your home and surroundings.



Level One ‘Solasafe’

The most widely used Solasafe Polycarbonate sheet. Available in Corrugated, Greca and 5 – Rib profiles. Seven colours with varying light and heat transmission ratings.



Level Two ‘Solasafe’ Comfort Range

In designer colours that transmit less heat but allow plenty of soft light to pass through. More comfort! Corrugated and Greca profiles. Two colours according to the profile selected.



Level Three ‘Solasafe’ HR1

Metallic particles reflect heat but allow soft diffused light to transmit. Especially suitable for use in hot climates. Corrugated and Greca profiles in Pearl Ice and Silvermist colours.

Specifications

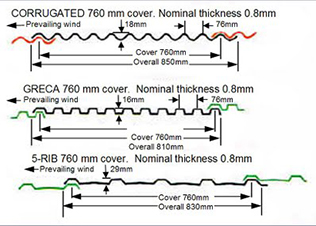

Available Domestic Profiles



Ampelite Domestic Fibreglass sheeting is available in the following profiles:



Colours available / Light and Heat transmission:



Colours available Light% Heat%
Clear 91 85.2
Opal 55 40.2
Grey 26 50
Light Bronze 36 60.6
Dark Tint 17 38.9
Wheat 30 38.1
Green 48 65
 Smooth Cream 44  35.2
 Mist Green 40 37.3
Pearl Ice 48 32.5
Silver Mist 17 22

Light transmission in accordance with AS/NZS 4257.4





Domestic Spanning Capacity:
Profile 1 sheets 2 sheets 3 sheets 4 sheets 5 sheets
Corrugated 760mm 1620mm 2380mm 3140mm 3900mm
5-Rib 760mm 1570mm 2330mm 3090mm 3850mm
Greca 760mm 1570mm 2330mm 3090mm 3850mm

Corrugated sheets should have 1.5 overlaps, 1 rib only on 5-Rib sheets and Greca. Overlaps should face away from the prevailing wind.



Sheet Lengths:
Colours Lengths Profiles
Clear  1.8 – 8.1m All profiles
Opal, Lt. Bronze, Grey  1.8 – 8.1m Crega, Corrugated
Opal, Lt. Bronze, Grey 1.8 – 6.0m 5-Rib
Dark tint, Wheat, Green 1.8 – 6.0m Corrugated only

Lengths available for domestic use: 1.8m, 2.1m, 2.4m, 2.7m, 3.0m, 3.6m, 4.2m, 4.8m, 5.4m, 6.0m, 8.1m



Schematics

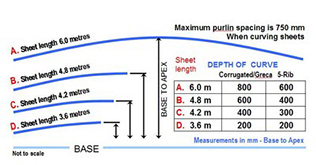

Maximum Recommended Curves:
