TRIMWALL®

Rib and pan walling





TRIMWALL®

Rib and pan walling





Description

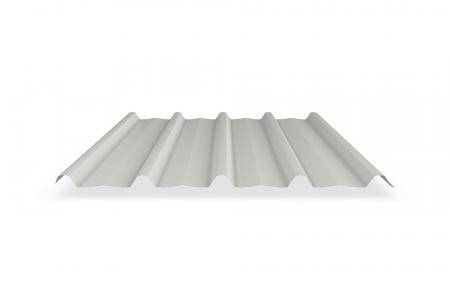

TRIMWALL® is an attractive, lightweight and versatile walling profile designed for domestic, rural and commercial applications.

  • Light, Easy to handle and quick to install
  • Complements the trapezoidal pan roofing profile
  • Large spans possible
  • Available in a wide variety of COLORBOND® steel colours and standard ZINCALUME® steel zinc/aluminium/magnesium coated steel





Colour Range

Categories

Filter

Filter by finish

Standard Colour Range

Basalt®

Bluegum®

Classic Cream™

Cottage Green®

Deep Ocean®

Dover white™

Dune®

Evening Haze®

Gully®

Ironstone®

Jasper®

Manor Red®

Monument®

Night Sky®

Pale Eucalypt®

Paperbark®

Shale Grey™

Southerly®

Surfmist®

Wallaby®

Windspray®

Woodland Grey®

Unpainted Steel Range

ZINCALUME® steel

UniCote® Lux Steel Samples - These colours are only available in Stramit Monoclad Wall Sheeting

African Wenge

Ashwood

Corten Red

Maple

Metal Stone

Midnight Matte

Pentagon

Saffiano

Silver Quartz

Spectrum

Weathered Iron

Zinc Graphic

Specifications

BMT

0.35mm (0.42mm BMT supplied in NSW)



Cover

762mm



Lengths

Sheets are supplied custom cut.



Tolerance

Length: +0mm, -15mm
Cover Width: +4mm, -4mm



Material Specification
  • Next generation ZINCALUME® zinc/aluminium/magnesium alloy-coated steel complies with AS 1397:2011 G550, AM125 (550 MPa minimum yield stress, 125 g/m2 minimum coating mass)
  • COLORBOND® steel complying with AS/NZS 2728:2013 and the steel base is an aluminium/zinc/magnesium alloy-coated steel complying with AS 1397:2011. Minimum yield strengths are G550 (550MPa). Minimum coating mass is AM100 (100g/m2)
  • COLORBOND® Stainless steel for severe and coastal environments. The painting complies with AS/NZS 2728:2013 and the steel base is stainless steel complying with AISI/ASTM Type 430; UNS No. S43000.



Mass – pre-painted steel

BMT 0.35mm: 3.67kg/m2

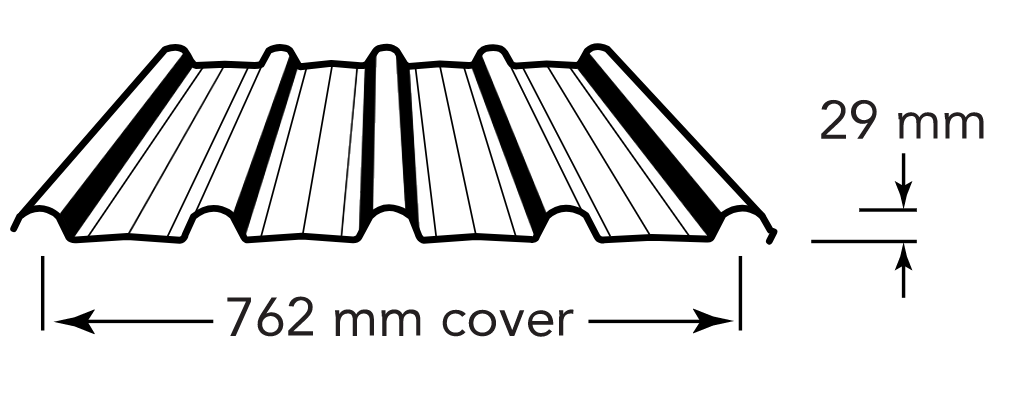

Profile
