MINI ORB®

Miniature corrugated walling



MINI ORB®

Miniature corrugated walling



Description

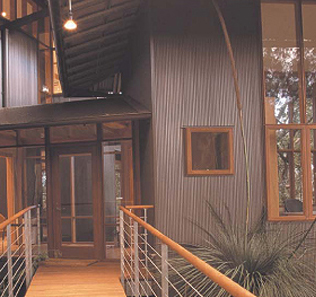

A mini-corrugated profile which is suitable for use in interior or exterior applications on straight or curved surfaces. It has the same traditional shape as corrugated but on a much reduced scale. Its subtle profile is a perfect complement to our other claddings to provide a contrasting surface as an accent feature. It is primarily used for decorative finishes on walls, ceilings and soffit linings; feature walls and partitions; and screens and small awnings not subject to any foot traffic.

  • Able to be used for both straight and curved applications
  • Can be used with the corrugations running vertically or horizontally
  • Can be laid flat, pre-curved, or spring-curved for increased versatility
  • Available in a wide variety of Colorbond pre-painted steel colours and zinc / aluminium-coated steel



Colour Range

This product is available in the standard range of COLORBOND® steel colours and in unpainted ZINCALUME® steel.

Categories

Filter

Filter by finish

Standard Colour Range

Basalt®

Classic Cream™

Cottage Green®

Cove®

Deep Ocean®

Dune®

Evening Haze®

Gully®

Ironstone®

Jasper®

Mangrove®

Manor Red®

Monument®

Night Sky®

Pale Eucalypt®

Paperbark®

Shale Grey™

Surfmist®

Terrain®

Wallaby®

Windspray®

Woodland Grey®

Ultra Colour Range

Dune®

Monument®

Surfmist®

Wallaby®

Windspray®

Woodland Grey®

Matt Colour Range

Basalt®

Dune®

Monument®

Shale Grey™

Surfmist®

Metallic Colour Range

Aries™

Astro™

Celestian™

Cosmic™

Galactic™

Rhea™

Unpainted Steel Range

ZINCALUME® steel

Specifications

BMT

0.42mm standard (0.48mm BMT available subject to enquiry)



Cover

820mm



Lengths

Sheets are supplied custom cut.



Tolerance

Length: +5mm, -5mm
Width: +2mm, -2mm



Material Specification
  • Next generation ZINCALUME® zinc/aluminium/magnesium alloy-coated steel complies with AS 1397:2011 G550, AM125 (550 MPa minimum yield stress, 125 g/m2 minimum coating mass)
  • COLORBOND® steel complying with AS/NZS 2728:2013 and the steel base is an aluminium/zinc/magnesium alloy-coated steel complying with AS 1397:2011. Minimum yield strengths are G550 (550MPa). Minimum coating mass is AM100 (100g/m2)
  • COLORBOND® Stainless steel for severe and coastal environments. The painting complies with AS/NZS 2728:2013 and the steel base is stainless steel complying with AISI/ASTM Type 430; UNS No. S43000. Subject to enquiry.



Curving Information
MINI ORB® curving requirements – mini corrugated  may be spring curved down to 1500mm radius. It is suitable for pre-curving – the minimum radius of curve is 150mm, and the minimum straight length after a curve is 50mm. Some possible profiles are shown on the left.



Mass – pre-painted steel

BMT 0.42mm: 4.04kg/m2
BMT 0.48mm: 4.58kg/m2

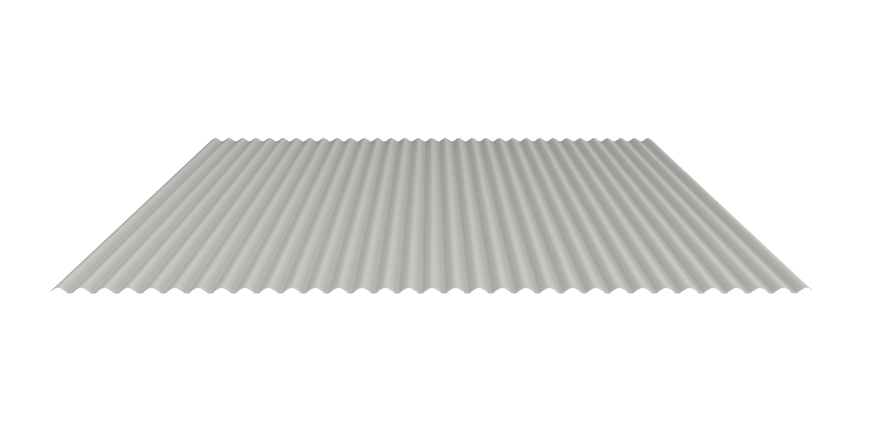

Profile
