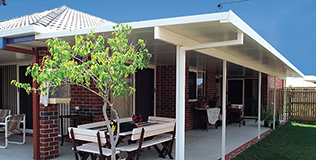

Lysaght® Patio Post

High gloss, profiled, aluminium post

Lysaght® Patio Post

High gloss, profiled, aluminium post

Description

The LYSAGHT® Patio Post is an attractive post designed for maximum visual impact and structural strength. The post is made from extruded aluminium and features a fluted profile and high gloss powder-coated finish. The posts sit neatly on die-cast aluminium feet which are easily fastened to concrete slabs or footings.

  • High gloss paint finish
  • Corrosion resistant extruded aluminium
  • Attractive, profiled cross section
  • Available in 2 stock lengths: 2400 & 3000mm

Colour Range

This product is available in the standard range of COLORBOND® steel colours and in unpainted ZINCALUME® steel.

Categories

Filter

Filter by finish

Standard Colour Range

Paperbark®

Classic Cream™

Unpainted Steel Range

Zincalume®

Specifications

Length

Available in two stock lengths: 2400mm and 3000mm.



Wall Thickness Area Weight Temper Moments of Inertia
1.6 mm 453.29 mm2 1.230 kg/m T5 lxx = lyy = 0.292 x 106 mm4
Capacity and Load Tables
Wind Category N1 (W28N) N2 (W33N) N3 (W41N) N4 (W50N)
Maximum allowable area of roof per post (m2). Governing factor is uplift force of 14 kN. 21.2m2 15.5m2 10.3m2 7.0m2
Maximum Uplift Forces
  • Sustainable by foot (as detailed with two M10 Dynabolts): 18kN
  • Sustainable by head with one central M8 bolt in slotted hole: 14 kN (as detailed with four 10-16×16 screws)

Greater uplift forces can be sustained at the ‘head-to-post’ connection by fixing Box beams to posts with Universal Brackets. Forces will depend on the number of screws used.

Schematics
