CUSTOM ORB®

Traditional, corrugated roofing and walling



CUSTOM ORB®

Traditional, corrugated roofing and walling



Description

The traditional corrugated profile is equally at home in both heritage and contemporary design. It is long, wide, strong, lightweight and economical profile which can be quickly and easily aligned. Add up these features and you have a steel roof or wall cladding that simply offers outstanding value.

  • Can be used for both roofing and walling applications
  • Available in a wide variety of Colorbond pre-painted colours and unpainted Zincalume
  • Roof sheet lengths of up to 24m can be used before an expansion joint is required
  • Can be laid flat or sprung curved for increased versatility
  • Minimum roof slope 5″



Colour Range

Categories

Filter

Filter by finish

Standard Colour Range

Basalt®

Bluegum®

Classic Cream™

Cottage Green®

Deep Ocean®

Dover White™

Dune®

Evening Haze®

Gully®

Ironstone®

Jasper®

Manor Red®

Monument®

Night Sky®

Pale Eucalypt®

Paperbark®

Shale Grey™

Southerly®

Surfmist®

Wallaby®

Windspray®

Woodland Grey®

Ultra Colour Range

Dune®

Monument®

Surfmist®

Wallaby®

Windspray®

Woodland Grey®

Matt Colour Range

Basalt®

Bluegum®

Dune®

Monument®

Shale Grey™

Surfmist®

Metallic Colour Range

Aries™

Astro™

Celestian™

Cosmic™

Galactic™

Rhea™

Double Sided Roofing Colour Range

Classic Cream™
Classic Cream™ gloss

Manor Red®
Classic Cream™ gloss

Paperbark®
Paperbark® gloss

Woodland Grey®
Classic Cream™ gloss

Unpainted Steel Range

ZINCALUME® steel

UniCote® Lux Steel Samples - These colours are only available in Stramit Corrugated Roof & Wall Cladding

African Wenge

Ashwood

Corten Red

Maple

Metal Stone

Midnight Matte

Pentagon

Saffiano

Silver Quartz

Spectrum

Weathered Iron

Zinc Graphite

Specifications

BMT

0.42 or 0.48mm



Cover

762mm



Lengths

Sheets are supplied custom cut.



Tolerance

Length: +10mm, -10mm
Cover Width: +4mm, -4mm



CUSTOM ORB® Material Specification
  • Next generation ZINCALUME® zinc/aluminium/magnesium alloy-coated steel complies with AS 1397:2011 G550, AM125 (550 MPa minimum yield stress, 125 g/m2 minimum coating mass)
  • COLORBOND® steel complying with AS/NZS 2728:2013 and the steel base is an aluminium/zinc/magnesium alloy-coated steel complying with AS 1397:2011. Minimum yield strengths are G550 (550MPa). Minimum coating mass is AM100 (100g/m2)
  • Stainless steel standard grade designation is AISI/ASTM Type 430; UNS No. S43000;

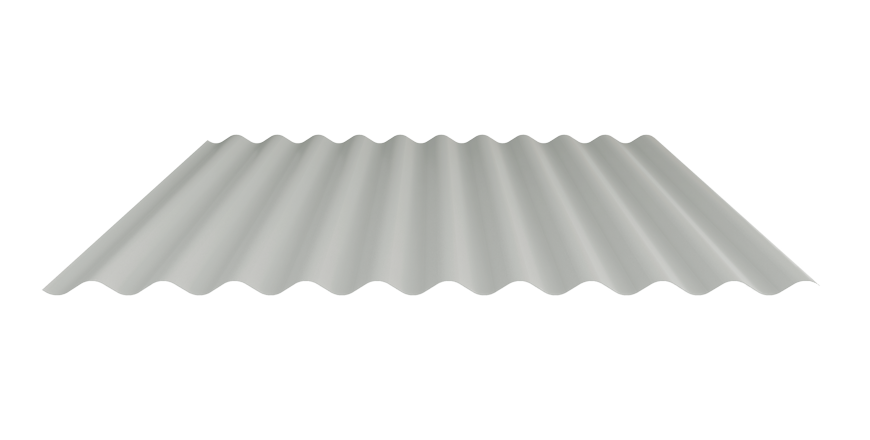

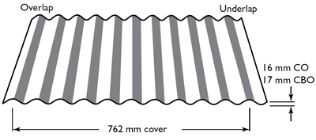

Profile
