CUSTOM ORB ACCENT™

Description

The CUSTOM ORB ACCENT™ 21 and CUSTOM ORB ACCENT™ 35 range is an exciting addition to the iconic corrugated roofing and walling profiles family. With two deeper profiles set to become the new design standard in Australian roofing and walling, deep corrugated allows architects and designers to create a bolder corrugated profile.

Can be used for both roofing and walling applications
Available in standard ZINCALUME® steel and our four most popular standard COLORBOND® steel colours, with a wide variety of other colours available via special order
Deeper ribs means greater spanning capacity and resistance to damage
Greater water carrying capacity allows for uses at lower minimum pitches of 3°

Colour Range

This product is available in the standard range of COLORBOND® steel colours and in unpainted ZINCALUME® steel.

Standard Colour Range

Surfmist®

Shale Grey™

Windspray®

Woodland Grey®

Monument®

Unpainted Steel Range

Heritage Galvanised

ZINCALUME® steel

Specifications

BMT

0.40mm or 0.48mm

Cover

Accent 21 – 762mm

Accent 36 – 724mm

Lengths

Sheets are supplied custom cut.

Tolerance

Length: + 7mm, – 7mm
Cover Width: + 4mm, – 4mm

Material Specification

Next generation ZINCALUME® zinc/aluminium/magnesium alloy-coated steel complies with AS 1397:2011 G550, AM125 (550 MPa minimum yield stress, 125 g/m2 minimum coating mass)
COLORBOND® steel complying with AS/NZS 2728:2013 and the steel base is an aluminium/zinc/magnesium alloy-coated steel complying with AS 1397:2011. Minimum yield strengths are G550 (550MPa). Minimum coating mass is AM100 (100g/m2)

Profile:

Accent 21

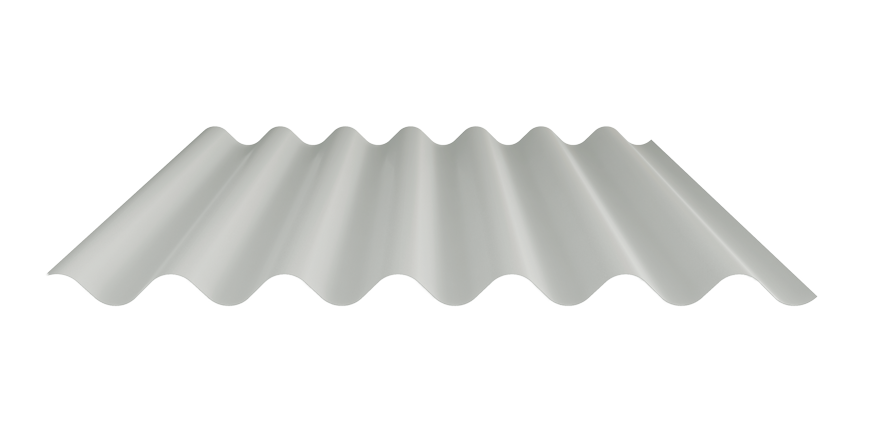

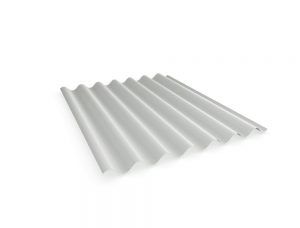

Accent 35
